MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design

Brand Name : MEASTEK

Model Number : HDP6070

Certification : CE

MOQ : 1

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 1000

Delivery Time : 5-8 work days

Bandwidth (-3dB) : 5 MHz

Attenuation ratio : 100X

Common mode voltage(DC+Peak AC) : ±700Vpk

Noise (Vrms) : <120mV

Contact Now

MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design


Key Features:

1. High-voltage test tool
Maximum measurement voltage ±700Vpk, suitable for high-voltage scenarios such as inverters and motor drives.


2. Low input capacitance
Single-end to ground <4pF, reducing circuit load and ensuring signal fidelity.


3. High CMRR performance
>80dB common mode rejection ratio at DC, effectively eliminating common mode interference.


4. Overload protection
Built-in overload indicator, red light warning when voltage exceeds limit, protecting equipment safety.


5. Flexible adaptation
Standard BNC to banana head/electronic cable, compatible with power meters, data loggers and other equipment.



Specifications

Model

HDP6070

Bandwidth (-3dB)

5 MHz

Rise time

≤70ns

Accuracy

0.1%

Attenuation ratio

100X

Maximum differential measurement voltage

(DC+Peak AC)

±700Vpk

Effective value

±500Vrms

Maximum input voltage to ground (Vrms)

600V CATI

Common mode voltage(DC+Peak AC)

±700Vpk

Input Impedance Single-ended to ground 2.5MΩ
Two input terminals 5MΩ
Input Capacitance Single-ended to ground 4pF
Two input ends 2pF

CMRR

DC >80dB
100kHz>60dB
1MHz>50dB
Noise (Vrms)

<120mV

Delay time Host: about 9ns
BNC cable 1m: about 5ns
Overload indicator voltage threshold

≥700Vpk

Overload indicator light (red light) Yes
Auto-save function Yes
Terminal load requirement ≥100kΩ
power supply USB 5V/1A adapter



Probe Standard Accessories


Name Object Parameters

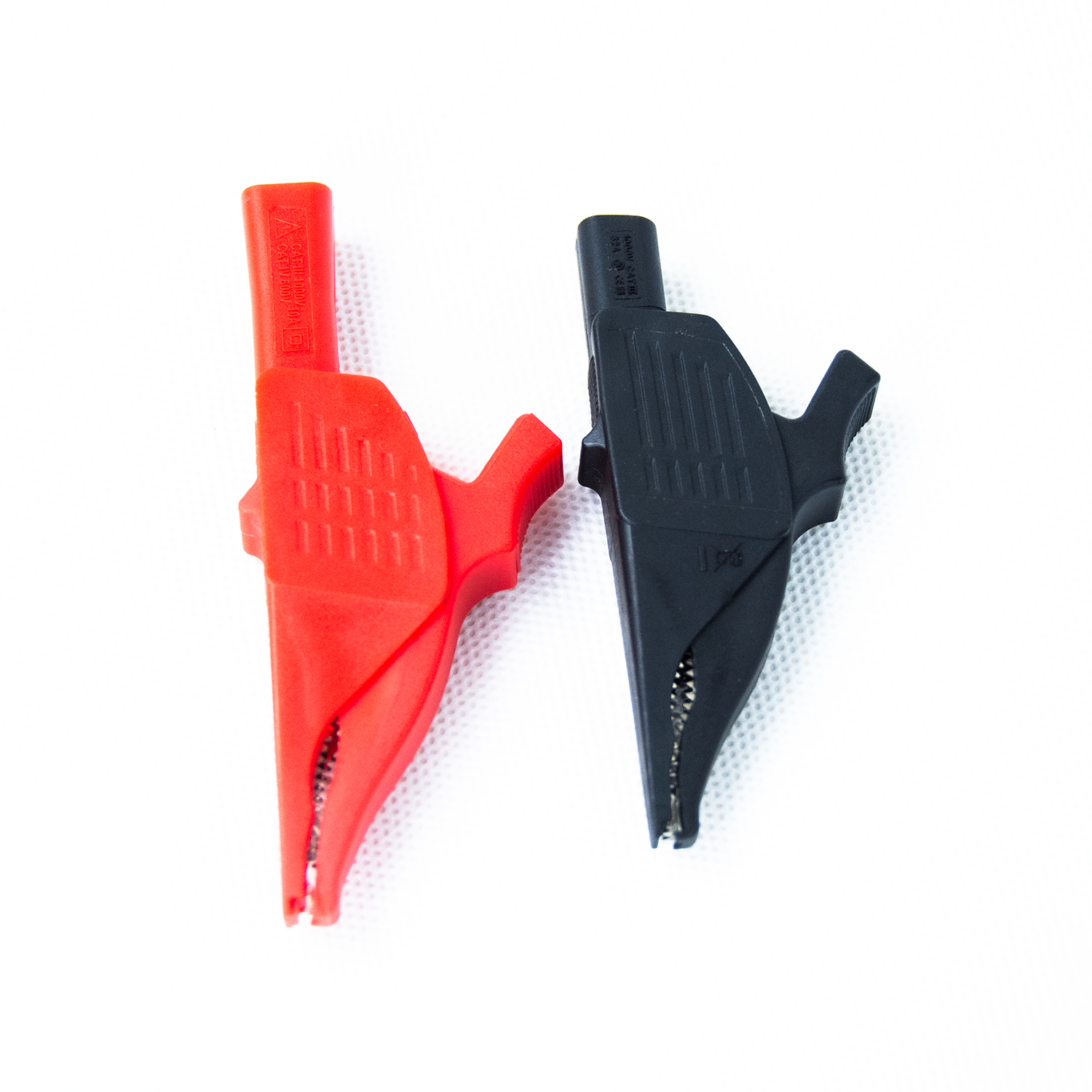

Alligator Clips MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design

CATIII 1000V

CATIV 600V

Test Hook MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design

CATII 1000V

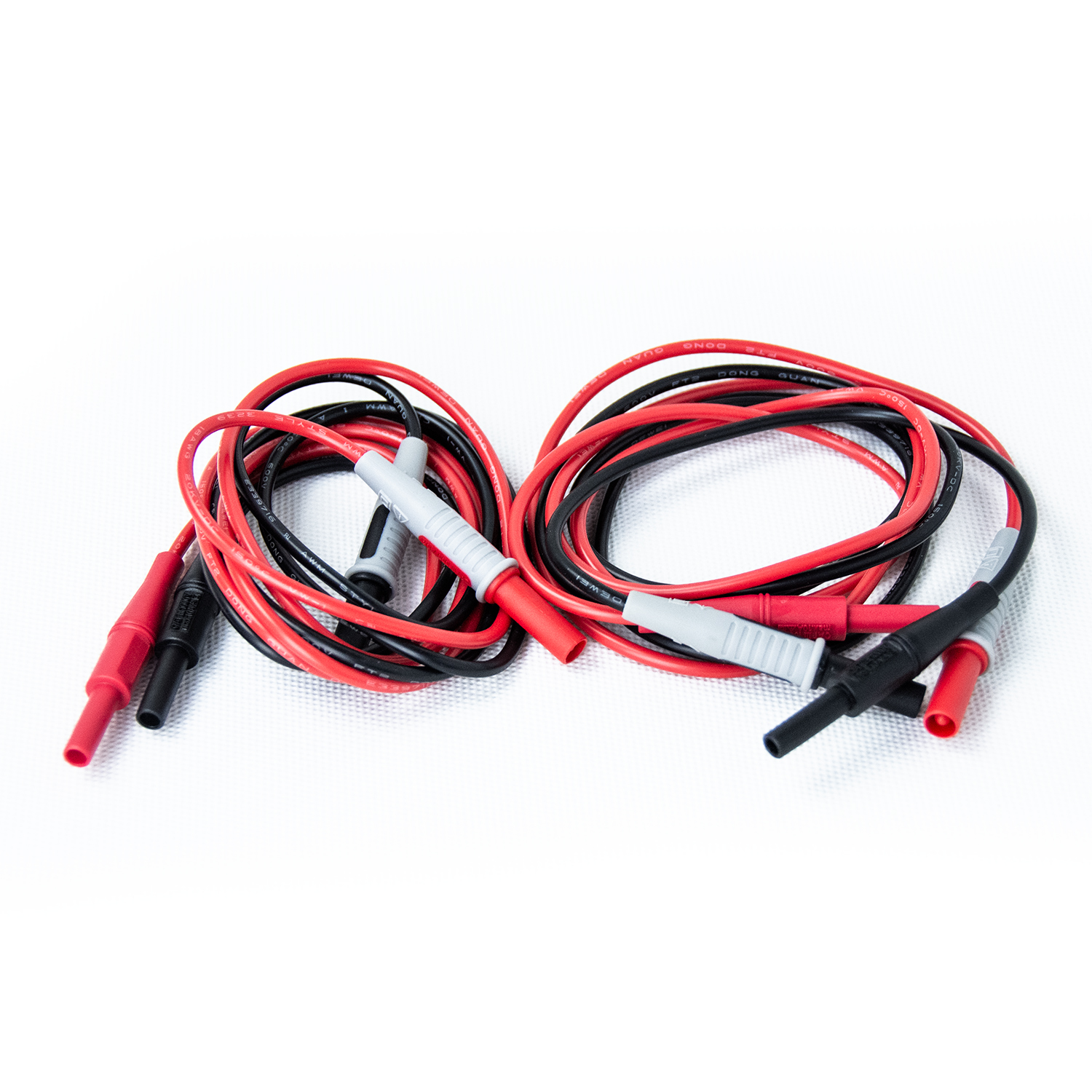

Input extension cord MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design

CATIII 1000V

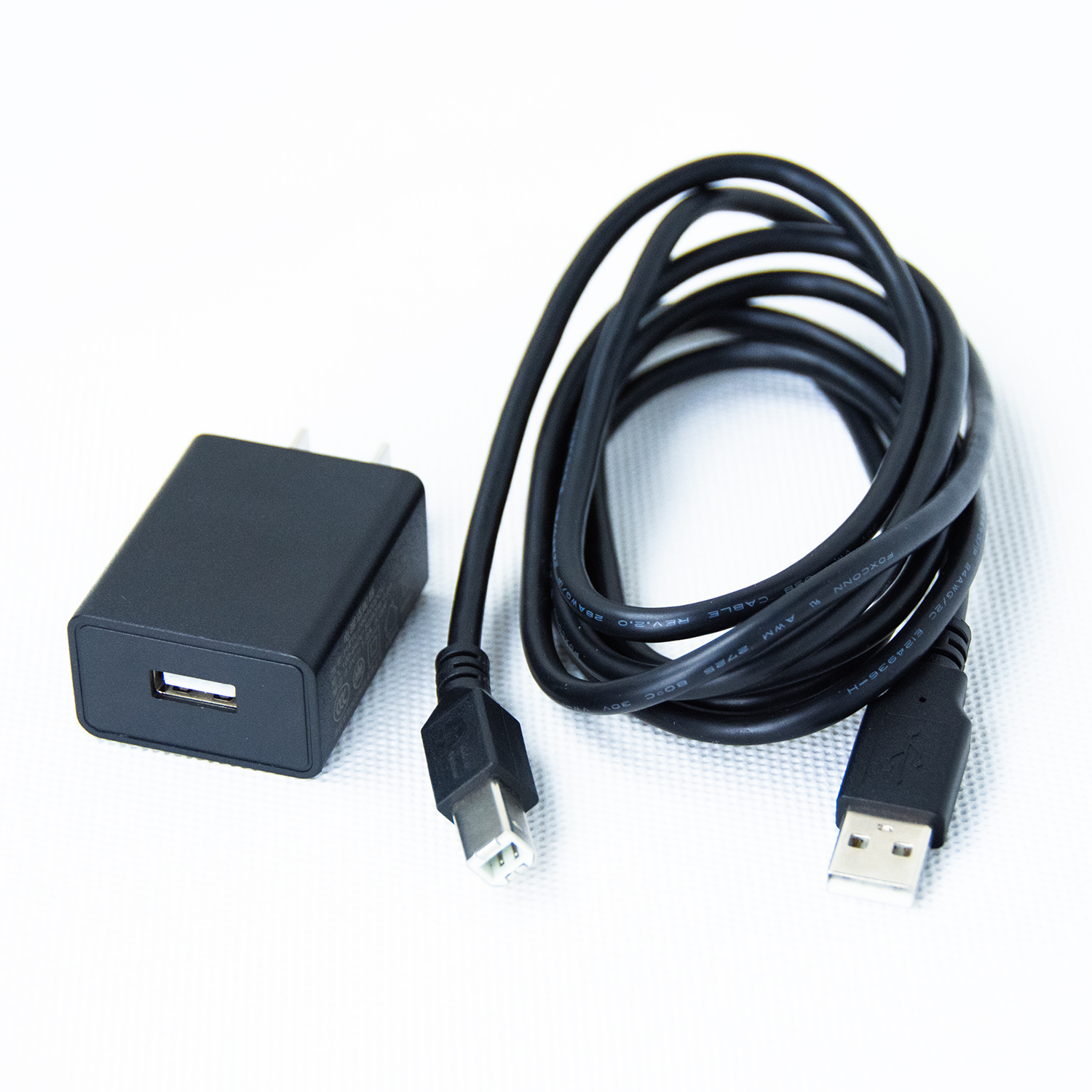

Power output line MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design Length 1 meter
Power adapter

USB 5V/1A

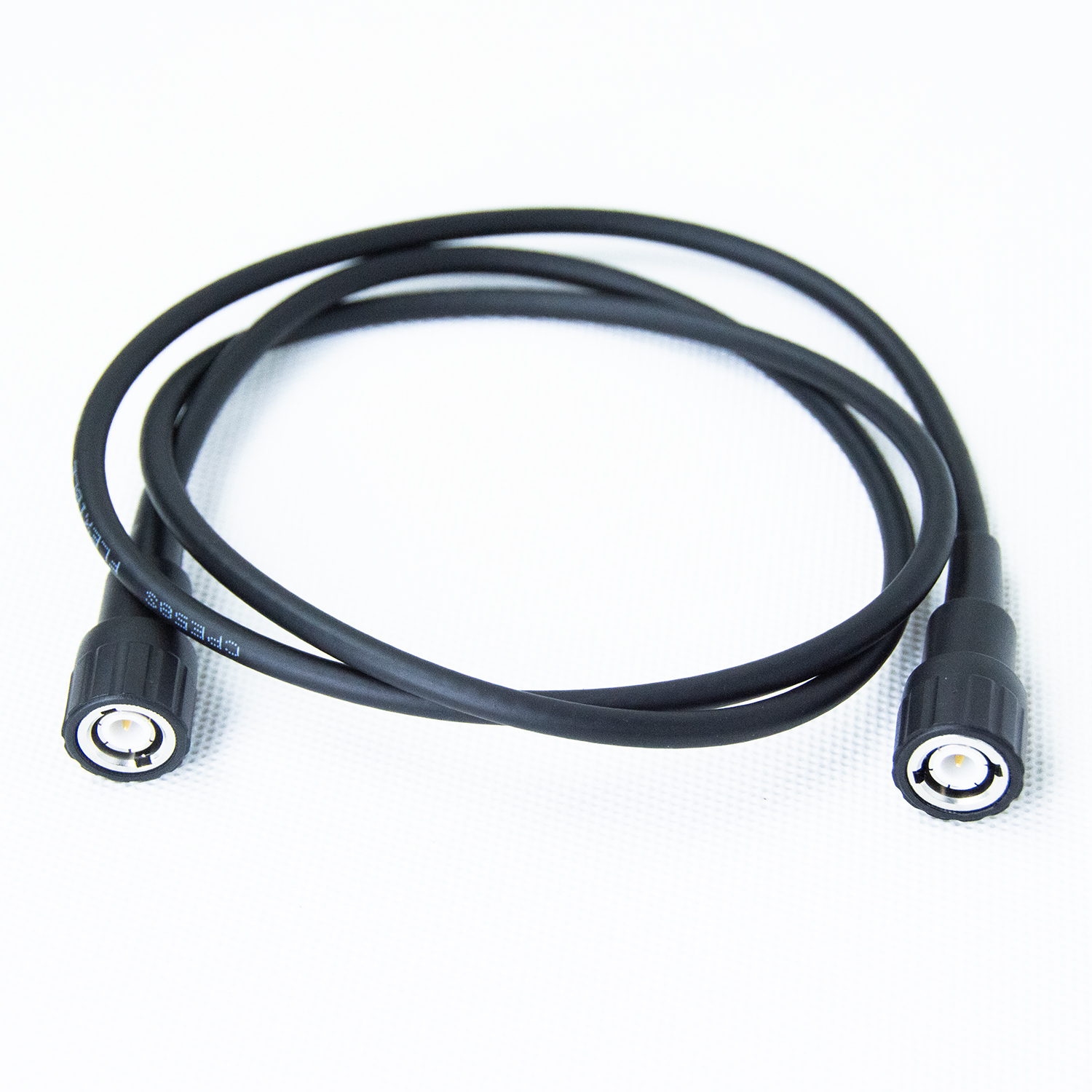

BNC output cable MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design Choose 1 from 3 BNC male to male output cable, length 1 meter
(for use with measuring instruments with BNC interface such as oscilloscopes and oscilloscope recorders)
BNC to banana plug MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design BNC male to banana output cable, length 1 meter
(For use with power analyzers, power meters, desktop multimeters and other measuring instruments with banana interface)
BNC to electronic cable MEASTEK HDP6070 Differential Probe, 100X Attenuation ±700Vpk High Voltage Measurement, 5MHz Bandwidth And Low Capacitance Design BNC male to electronic output cable, length 1 meter
(for use with measuring instruments with two-terminal signal input interfaces such as data loggers and power meters)



Packing List

Name Quantity
BNC output cable According to the host interface type:
Choose one of the three
1 piece
BNC to banana plug
BNC to electronic cable
High Precision Differential Probe 1 piece
Alligator Clips 1 pair
Test Hook 1 pair
Input extension cord 1 pair
Power output line 1 piece
Power adapter 1 piece
Test report 1 serving
Warranty card 1 piece
Probe Box 1 piece

Note: BNC male to male output cable, BNC male to banana plug output cable, BNC male to electronic cable, three types of output cables can be selected according to the host interface input type matched by the customer.
